產品系列
SIZE56 (TS3653)

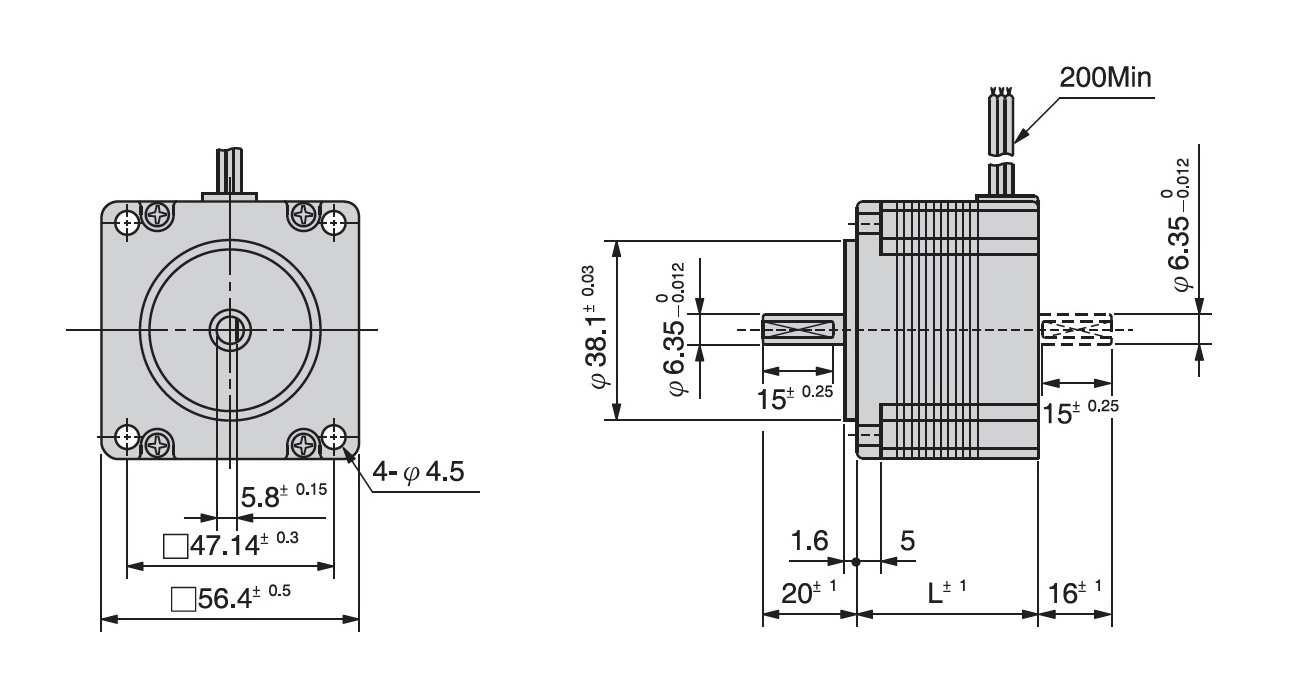

- 安裝面:□56.4mm
- 馬達長度:39mm~84mm
- 靜止扭力:3.9kgf⋅cm~20kgf⋅cm
廠牌:TAMAGAWA 多摩川精機株式會社
| 形式 | 額定電流 A/Phase |
線圈阻抗 Ω/Phase |
靜止扭力 kgf⋅cm |
馬達長度L mm |
|
| 單軸 | 雙軸 | ||||
| TS3653N1E1 | TS3653N11E1 | 1 | 5.2 | 3.9 | 39 |
| TS3653N1E2 | TS3653N11E2 | 2 | 1.4 | 3.9 | 39 |
| TS3653N1E3 | TS3653N11E3 | 3 | 0.63 | 3.9 | 39 |
| TS3653N2E4 | TS3653N12E4 | 1 | 7.2 | 9 | 54 |
| TS3653N2E5 | TS3653N12E5 | 2 | 1.8 | 9 | 54 |
| TS3653N2E6 | TS3653N12E6 | 3 | 0.75 | 9 | 54 |
| TS3653N3E7 | TS3653N13E7 | 1 | 8.2 | 13.5 | 76 |
| TS3653N3E8 | TS3653N13E8 | 2 | 2.25 | 13.5 | 76 |
| TS3653N3E9 | TS3653N13E9 | 3 | 1 | 13.5 | 76 |
| TS3653N4E12 | TS3653N14E12 | 5 | 0.44 | 20 | 84 |
| TS3653N84 | — | 4 | 0.7 | 18 | 84 |
